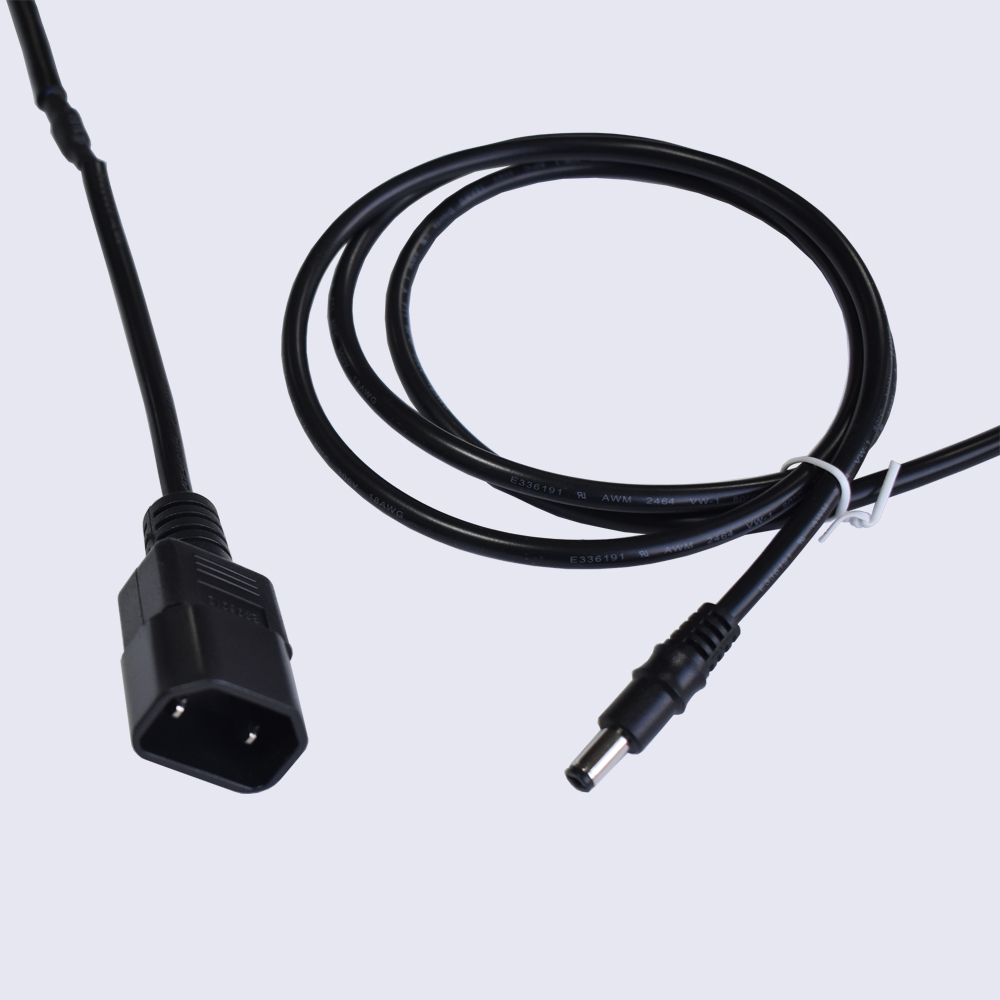

Model No: DSC1146

Power Cable Harness

Power cable harness is a product composed of power cord, connector, insulation material, and protective sleeve, etc. It can concentrate multiple power cords together, and uses different materials and specifications to adapt to different application scenarios.

Delivery :

EXW,FOB,CIF,DAPDDU

minimum order :

1000 pieces

Supply Ability :

1000000pieces / Year

Stock Time :

45Day

Country of Origin :

China

Quantity :

Contact Now

Introduction

Power cable harness is mainly used in electronic products, automobiles, and other electrical systems, it is a important component of connecting its internal power, current, signal and data to a distribution board or other equipment. Through wiring harnesses , the wire can be protected well, wiring and installation processes can be simplified, and durability and reliability can be improved.

Because different fields have different demands for power cable harness, so the power cable harness usualiy requires customization according to customers requirements. For electronic products, power cable harnesses are uaually used in computers, commucation equipments, televisions, etc. In the automotive industry, power cable harnesses are widely used in places such as car doors, instrument panels, and engine rooms.

In general, power cable harnesses have a widely application in various electronic and electrical systems, by centralizing and protecting multiple power lines, it can bring better durability, reliability, and safety to the product.

Description

Product Name	Power Cable Harness
Specification	Custom Cable & Wire Harness / OEM,ODM Heat-Shrinkable Tube 1: 4.8 Black Environmental Withstand Voltage 600V 125℃ Inner Wall Taped Heat-Shrinkable Tube 2: 7.9mm Black Environmental Withstand Voltage 600V 125℃ Inner Wall Taped All Materials Conforming To RoHS
Application	Industrial Equipment
Insulated Resistance	≥5 MΩ
On Resistance	/
Salt Spray Test	≥48 h
Connector	Plug 1: DC Plug5.5x2.1x23mm PBT Black Tape Phosphorous Copper Brass Nickel Plating Welding P/N: 5521TV230-1T00-02 Plug 2: NOUL Plug 45P Black Internal Mold Material: LD-PE Low Density Transparent Grey Voltage Transformer 1525435mm P/N:PWM-40-12
Cable	UL2464 18#（41/0.16TS）x2C OD:5.2 PVC BLACK QZ3(C18) Black Power Wire SVT 18AWGx2C OD:6.0mm Black Without Head: L+110±10mmmm Tail Opening 16±2 Tinned 3±1mm
MOQ	Sample order/small order can be accepted
R&D	Provide complete engineering and design services
Certificates	ISO13485, ISO14001, ISO9001, IATF16949, UL, IPC620, IMDS, ROHS, REACH
QC	Passed ISO 9001:2015 quality control system. All the products are 100% test before delivery. UL factory certificate of compliance.
