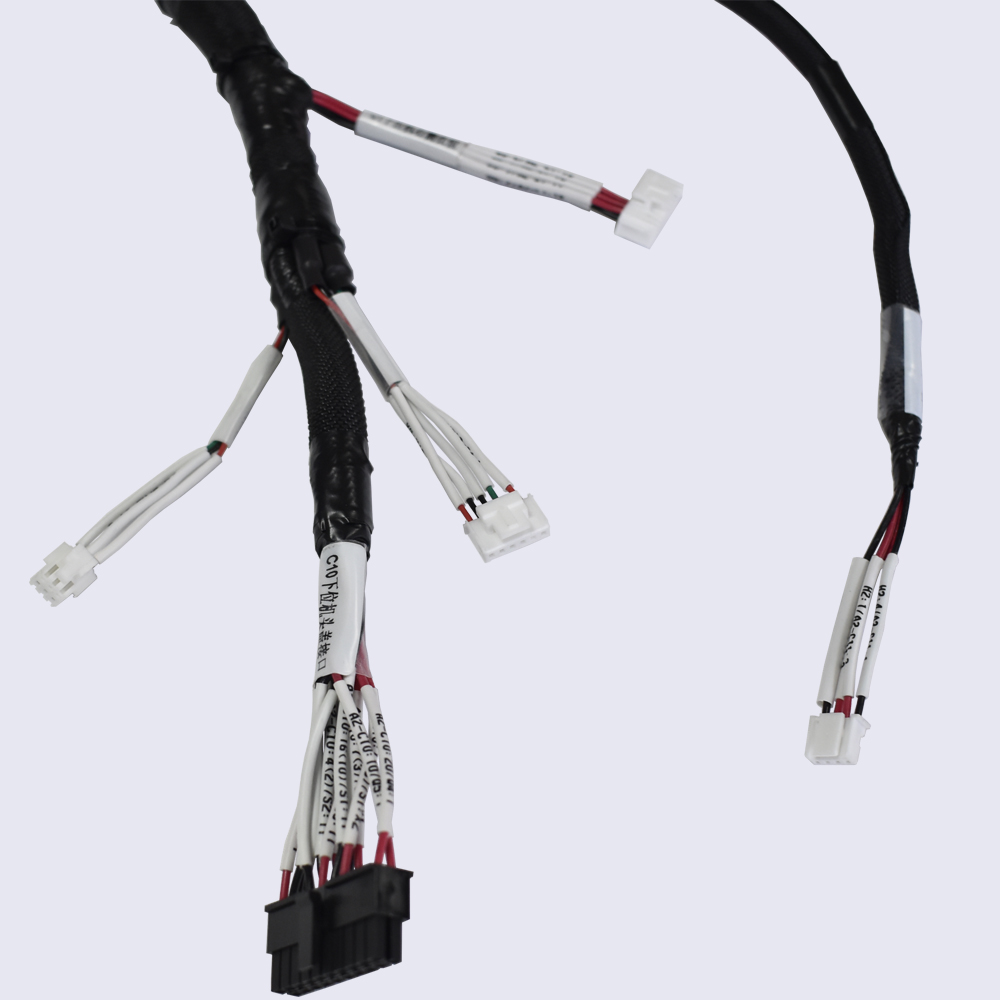

Industrial Robot Wire Harness
Description
The industrial robot wire harness mainly consists of insulated wires, plugs, flat cables, protecting sleeves and etc. The customized design scheme of the industrial robot wire harness production should be based on the movement of robot, operating enevironment and requirement of special function to ensure of the quality and long life-span of the industrial robot wire harness. And the industrial robot wire harness is usually comprised by standard wire harness that can be used on different kinds of robots and customized wire harnesses for specific robots.
Specification
Product Name | Industrial Robot Wire Harness |
Specification | Custom Cable & Wire Harness / OEM,ODM |
Application | Industrial Robot |
Insulated Resistance | ≥5 MΩ |
On Resistance | ≤2Ω |
Salt Spray Test | ≥48 h |
Connector | Housing 1: 6P PH: 2.0mm Nylon PA66 UL94V-2 White Double Row HX P/N: HX20008-6Y Housing 2: 20P PH: 2.0mm Nylon PA66 UL94-V-2 White Double Row HX P/N: HX200208-20Y Housing 3: 3P PH: 2.5mm Nylon PA66 UL94V-2 White Double Row HX P/N: HX25034-3Y Housing 4: 2P PH: 4.20mm Nylon 94V-2 Single Row White HX P/N: HX42001-2P Housing 5: 2*6P PH: 4.20mm Nylon 94V-2 Double Row Transparent HX P/N: HX42001-12P Housing 6: 2P PH: 4.20mm Nylon 66 White Single Row 94V-0 HX P/N: HX42000-2R Housing 7: 2*6P PH: 4.20mm Nylon 94V-2 Double Row Transparent HX P/N: HX42000-12R Housing 8: 4P PH: 2.5mm Nylon 66 Single Row White HX P/N: HX25022-4P Housing 9: 3P PH: 2.5mm Nylon 66 Single Row White HX P/N: HX25022-3P Housing 10: 6P PH: 2.0mm Nylon PA66 UL94V-2 White Single Row HX P/N: HX20020-6P Housing 11: 2P PH: 2.5mm Nylon 66 Single Row White HX P/N: HX25023-2R Housing 12: 4P PH: 2.0mm Nylon 66 UL94V-0 White Single Row HX P/N: HX20018-4Y Terminal 1: PH: 2.0mm Tinned Phosphor Bronze Applicable Wire Diameter 22#-28# HX P/N: HX20028-PT Terminal 2: PH: 2.5mm Tinned Phosphor Bronze Applicable Wire Diameter 28#-22# HX P/N: HX25002-PT Terminal 3: PH: 4.20mm Tinned Phosphor Bronze Applicable Wire Diameter 24~20# HX P/N: HX42001-21PT Terminal 4: PH: 4.20mm Tinned Phosphor Bronze (Post-Plated) Salt Spray 48H Applicable Wire Diameter 24~20# HX P/N: HX42000-21RT Terminal 5: PH: 2.0mm Tinned Phosphor Bronze Applicable Wire Diameter 28~22# HX P/N: HX20012-PT Terminal 6: PH: 2.5mm Tinned Phosphor Bronze Applicable Wire Diameter 28#-22# HX P/N: HX25023-RT Terminal 7: PH: 2.0mm Tinned Phosphor Bronze Applicable Wire Diameter 22~28AWG HX P/N: HX20016-PT |
Cable | Cable 1: UL1007 1Cx24# 80℃ OD: 1.40mm Black L=870 Q8&Q9 Cable 2: UL1007 1Cx24# 80℃ OD: 1.40mm Red L=870 Q8&Q9 Cable 3: UL1007 1Cx24# 80℃ OD: 1.40mm Black L=670 Q3 Cable 4: UL1007 1Cx24# 80℃ OD: 1.40mm Red L=670 Q3 Cable 5: UL1007 1Cx24# 80℃ OD: 1.40mm Black L=730 Q3 All-in-One Machine Power Source Cable 6: UL1007 1Cx24# 80℃ OD: 1.40mm Red L=730 Q3 All-in-One Machine Power Source |
MOQ | Sample order/small order can be accepted |
R&D | Provide complete engineering and design services |
Certificates | ISO13485, ISO14001, ISO9001, IATF16949, UL, IPC620, IMDS, ROHS, REACH |
QC | Passed ISO 9001:2015 quality control system. All the products are 100% test before delivery. UL factory certificate of compliance. |
